Rendered walls can look brilliant when they’re finished well, but even good house rendering can develop cracks over time. In Sydney, the mix of hot days, sudden downpours, salty coastal air, and normal building movement means cracking is one of the most common concerns homeowners notice first.
The good news: many render cracks are minor and manageable. The better news: most repeat cracking is preventable once you understand why it happened in the first place.
Why do rendered walls crack in Sydney?
Render is a hard, thin skin applied over a substrate (brick, block, fibre cement, existing render, and so on). The wall underneath moves in tiny ways. The render itself also expands, contracts, and dries (cures). Cracks appear when:
– The render shrinks as it cures and dries too quickly
– The wall/substrate moves more than the render can tolerate
– Movement “concentrates” at openings and corners (windows, doors)
– Moisture gets behind the render and weakens the bond or changes the substrate
– The system isn’t matched to the substrate or conditions (materials, thickness, reinforcement, joints)
Sydney-specific factors that can amplify these stresses include:
– Hot, dry westerlies that pull moisture out of fresh render quickly (shrinkage risk)
– Wind-driven rain on exposed elevations, especially during storm season (moisture risk)
– Coastal salt exposure and persistent humidity in some suburbs (moisture + salt crystallisation cycles)
– Reactive soils and settlement in some areas (movement risk)
Crack patterns: what they often suggest
Crack shape and location can give you a strong clue about the cause. You don’t need to diagnose like an engineer, but you can spot patterns that guide what to do next.
Hairline, random “map” cracks
These are fine, shallow cracks that look like a web or a scattered pattern. They often relate to:
– Shrinkage during curing
– Overly “thirsty” substrate pulling water out too fast
– Hot/windy application conditions
– Too-thick coats drying unevenly
Hairline cracking is frequently cosmetic, but it can become a pathway for water over time if left open.
Straight cracks along the long wall run
Long, uninterrupted walls expand and contract with temperature changes. Without well-placed control joints (also called articulation or movement joints), that movement can show up as straight cracking.

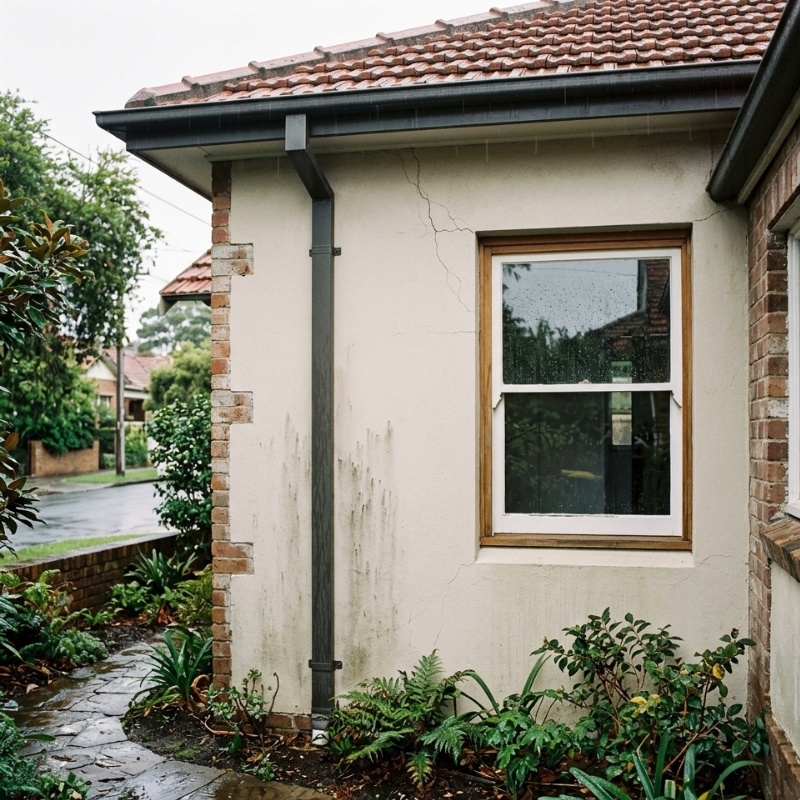

Cracks at corners of windows and doors (diagonal or radiating)
Openings concentrate stress. If the substrate moves, or if there’s not enough reinforcement around corners, cracks can radiate from window/door corners or appear diagonally.
Stepped cracks following brick lines
A stepped pattern that follows mortar joints can point to movement in the masonry itself (settlement, shrinkage, or structural movement), with the render simply reflecting what the substrate is doing.
Horizontal cracks
Horizontal cracks can be caused by a weak plane in the render (bond issue), moisture issues, or movement at a change in material/structure. They deserve closer attention because they can sometimes indicate delamination (loss of adhesion) developing behind the surface.
Are hairline cracks in render normal?
Hairline cracks are common, particularly in the first months after application or after big seasonal changes. “Common” doesn’t always mean “ignore forever”, though.
You can generally treat hairline cracks as low risk when:
– They’re very fine and don’t widen over time
– There’s no sign of moisture staining, bubbling paint, or powdery deposits
– They’re not concentrated around one structural “hotspot” (like one window corner)
It’s still smart to monitor them and address sealing or paint compatibility rather than repeatedly patching the same spot without understanding the cause.
The most common causes of render cracking
1) Shrinkage during curing (render dries too fast)
Render needs controlled curing. If it loses moisture too quickly, it can shrink and crack. In Sydney, rapid drying can happen when:
– It’s hot, windy, or very dry (especially in the west)
– The wall is in full sun for long periods
– The substrate is dry and absorbent (“thirsty”)
– There’s inadequate curing (for example, not protecting it from drying winds)
Prevention comes down to good substrate preparation, correct mixing, and managing curing conditions.
2) Substrate movement (the wall moves, render can’t stretch)
All buildings move a little. Render is not flexible like rubber; it has limits. Movement increases with:
– Normal settlement in newer builds
– Reactive clay soils and moisture changes in the ground
– Temperature swings cause expansion and contraction
– Structural changes (renovations, removed walls, added loads)
– Tree roots and drainage issues are altering soil moisture
If the wall continues to move, cosmetic patching alone won’t last.
3) Missing or poorly detailed movement joints
Movement joints are designed as “release points” so the render can move without cracking. They matter more on:
– Long, uninterrupted elevations
– Areas with changes in substrate (brick to FC sheet)
– Upper-storey walls exposed to strong sun and wind
– Junctions between different structural elements
When joints are missing or incorrectly carried through the render system, cracking often appears where the building “wants” a joint.
4) Insufficient reinforcement in high-stress zones
Reinforcing mesh can help spread stress and reduce cracking risk, particularly:
– Around openings (windows and doors)
– On corners and edges
– Over changes in material
– In areas prone to impact or vibration
Not all walls need the same reinforcement strategy, but corners and openings are classic failure points.
5) Moisture behind the render
Moisture can weaken the bond between render and substrate or create salt-related issues. Common Sydney causes include:
– Leaking gutters, downpipes, or flashing
– Poor drainage at the base of walls (water pooling)
– Garden beds built up against walls
– Cracked or failed sealant around penetrations
– Persistent wind-driven rain on exposed faces
If you see staining, bubbling paint, or a “hollow” sound when you tap the wall, moisture and adhesion should be part of the investigation.
A simple homeowner checklist before you patch anything
Before patching, do a quick triage. This saves money and avoids “repairing” the symptom while the cause continues.
Step 1: Map and measure
– Mark the crack ends lightly with pencil
– Measure the widest part (even comparing to a coin edge helps)
– Note if it crosses corners, openings, or changes in material
Step 2: Check for moisture clues
– Any bubbling paint, discolouration, or damp smell near the crack?
– White powdery residue on the surface?
– Check gutters, downpipes, and any plumbing on that elevation
Step 3: Tap test for hollow spots
Gently tap along the cracked zone. A hollow sound compared to the surrounding areas can suggest the render has debonded (delaminated) behind the surface.
Step 4: Monitor for change
Take a photo with a ruler for scale, then re-check after:
– Heavy rain
– A heatwave week
– 2–4 weeks of normal conditions
If it’s widening, spreading, or reappearing quickly after patching, you’re likely dealing with movement, moisture, or adhesion issues.
If you’re unsure whether a crack is cosmetic or a bigger problem, start with these cracked render warning signs so you know what to monitor and what shouldn’t be ignored.
Prevention: what actually reduces cracking long-term
Control movement instead of chasing cracks
If you’re building, renovating, or redoing finishes, the biggest prevention wins usually come from controlling movement rather than chasing cracks later.
Key principles:
– Use movement joints where the building needs them (long runs, changes in substrate, structural junctions)
– Reinforce corners and openings thoughtfully
– Match the render system to the substrate and exposure conditions
– Avoid creating moisture traps at wall bases
Substrate preparation and priming
A common cause of early cracking is a substrate that’s too absorbent, dusty, or uneven. Preparation should aim to:
– Remove loose material and contaminants
– Even out suction so the render cures consistently
– Ensure compatible primers or bonding where needed
Curing management in Sydney weather
Sydney conditions can change quickly, and curing isn’t “set and forget”.
Practical curing-aware habits:
– Avoid rendering in extreme heat or strong drying winds when possible
– Protect fresh render from direct sun and wind exposure
– Don’t rush coats; allow appropriate set and cure periods
– Plan around rain risk so fresh work isn’t waterlogged
Sydney’s mix of heat, storms, and coastal air can be tough on finishes, so these external wall care in Sydney weather habits help you catch small issues before they spread.
Moisture management around the building
Moisture is one of the biggest drivers of both cracking and repeat failure.
Start with these:
– Keep gutters and downpipes maintained and correctly directed
– Make sure surface water drains away from walls
– Avoid garden beds sitting against rendered walls (or ensure separation and drainage)
– Seal penetrations properly (taps, pipes, fixtures) and keep sealant in good condition
Can I just paint over render cracks?
Painting over cracks without preparation usually leads to one of three outcomes:
– The crack “telegraphs” back through the paint
– Water still gets in, and paint blisters or peels
– The crack widens and splits the paint film
A better approach is:
– Identify whether it’s shrinkage, movement, or moisture-related
– Repair with a method compatible with the render system and expected movement
– Use compatible coatings designed for masonry surfaces
If the crack is active (changing), painting alone won’t stop it.
When cracks mean “don’t DIY this”
Some situations are worth escalating for assessment rather than repeated patch jobs.
Seek further assessment if you notice:
– Cracks that widen over weeks (active movement)
– Stepped cracks that suggest substrate movement or settlement
– Cracks paired with doors or windows sticking, or new gaps appearing internally
– Long horizontal cracks, bulging, or areas that sound hollow
– Persistent dampness, staining, or bubbling paint
For a general benchmark on what’s considered acceptable vs concerning in residential finishes, you can refer to the NSW Government’s guidance: Guide to Standards and Tolerances.
A Sydney scenario guide to preventing repeat cracking
Coastal suburbs: salt + moisture cycling
If you’re closer to the coast, moisture and salt exposure can be an ongoing factor.
Focus on:
– Keeping coatings in good condition (don’t let small cracks stay open)
– Fixing water entry points quickly (flashings, sealants, gutters)
– Avoiding landscaping that keeps wall bases damp
Western Sydney: heat + fast drying
Heat and drying winds increase shrinkage risk during application and can accelerate thermal movement over time.
Focus on:
– Curing management and protection in hot periods
– Movement control on long sun-exposed elevations
– Regular inspection after heatwaves for small cracks before they grow
Older brick homes: movement history matters
Older homes may have historic settlement or movement that has “stabilised”, or they may still move due to drainage changes, tree roots, or renovations.
Focus on:
– Mapping cracks over time (don’t assume “it’s always been like that”)
– Checking drainage and water management around footings
– Being cautious with rigid patch materials in movement-prone zones
Why do cracks keep coming back in the same spot?
Repeat cracking usually means the underlying driver is still present. The most common reasons are:
– The wall is moving (and the repair didn’t allow for movement)
– Moisture is entering behind the surface and weakening the bond
– There’s no movement joint where one is needed
– The repair material isn’t compatible with the existing system
– The crack was “filled” but not properly prepared (edges, depth, adhesion)
If you’re trying to stop the same crack from coming back, focus on preventing cracks in rendered walls by controlling moisture, movement, and curing conditions.
Practical habits that protect rendered walls year-round
You don’t need to baby your walls, but a few habits make a big difference in Sydney conditions:
– Do a quick exterior walk-around after major storms
– Keep gutters clean and downpipes flowing before winter rain periods
– Re-seal gaps around penetrations when sealant shrinks or splits
– Keep sprinkler systems from soaking walls repeatedly
– Avoid leaning heavy objects or repeated impact against rendered surfaces
– Address small cracks early so water doesn’t get time to work behind the finish
Final FAQ
How do I know if a render crack is serious?
Look for change over time, location, and accompanying symptoms. Cracks that widen, spread quickly, form stepped patterns, run horizontally for long distances, or appear with damp staining or hollow areas are more concerning than stable hairlines.
Are hairline cracks always cosmetic?
Often, yes. But even cosmetic cracks can become water pathways if left open for years. If hairlines are widespread or growing, investigate shrinkage and curing conditions and coating compatibility.
Why do cracks appear around windows and doors?
Openings concentrate stress and movement. Small substrate movement or thermal changes often show up first at corners, especially if reinforcement around openings isn’t adequate.
Do coastal conditions make render cracks more?
Coastal exposure can increase moisture and salt cycling, which can worsen surface degradation and encourage cracking and coating failure if small defects aren’t maintained.
What’s the difference between cracking and delamination?
Cracking is a split line in the surface. Delamination is the loss of bond behind the render (often found by a hollow sound or visible bulging). Delamination typically needs more than a surface patch.
Can I seal cracks myself?
Small, stable hairline cracks can sometimes be sealed with compatible products and coatings, but the key is confirming the crack isn’t active and there’s no moisture driver. If the crack returns quickly, you’ll need to address the underlying cause.
How can I prevent cracks after repairs?
Prevention is about controlling movement and moisture: appropriate joints, reinforcement where needed, compatible repair methods, good curing and coat tim
